VFFS Pillow/Gusseted/Chained Bagger VP52A/VP52B/VP52IIB

Suitable to pack coffee bean, sugar, salt, spice, potatochip, puffed food, jelly, pet food, snacks, gummy, etc

Items	Content
Model	VP52B/VP52A	VP52IIB
Max packaging speed	v60bags/min	85bags/min
Type of bag making	Pillow bag, gusseted bag, punching bag, vacuum bag
Bag size	(L)50-350mm (W)50-250mm
Film width range	120-520mm
Film thickness	0.04-0.09mm
Packing film material	BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE,etc
Thickness of film	0.04-0.09mm
Air consumption	0.8Mpa 0.4m³/min
Voltage	3.4KW/220V 50/60Hz 4.2KW/220V 50/60Hz
Dimension	L1560W1160H1530mm
Net weight	480kg

INQUIRY ONLINE

product detail

Features

A. Film drawing down system controlled by servo motor.

B. Automatic film rectifying deviation function;

C. Various alarm system to reduce waste;

D. It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment;

Technical advantages

The frame is made of 304 stainless stell, which make sure the machine with longer working life and anti-corrosion
SIEMENS PLC control the whole machine movement
Perfect alarm system to help resolve the problem at the frist time

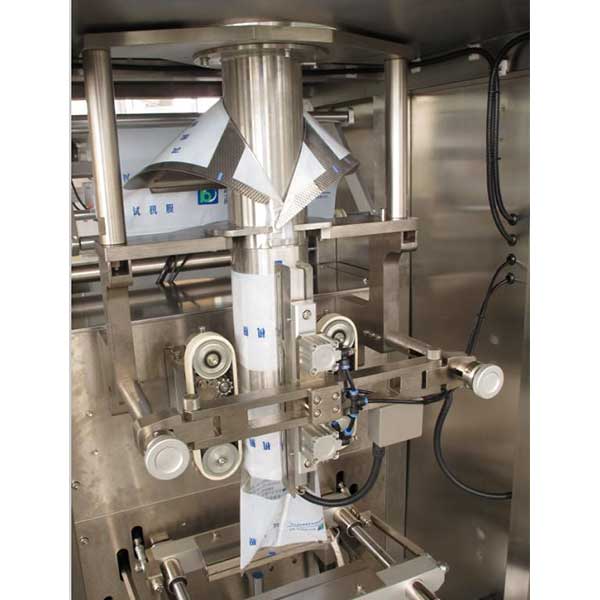

Double-belt pulling film system, fast & work stable

Optional Device

Air inflation device, gusset device, euroslot device, strip bag device, PE film sealing device, ect.

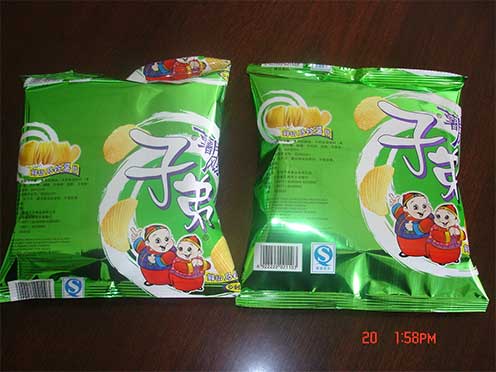

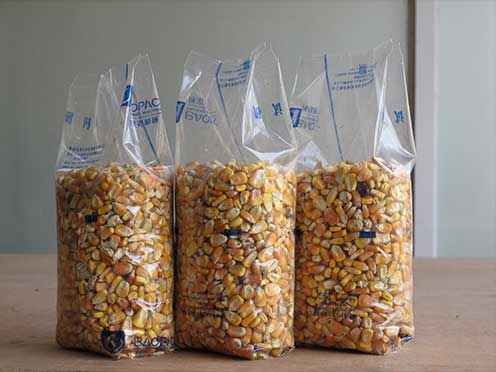

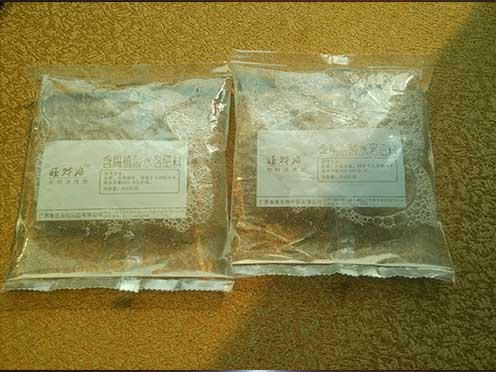

BAG TYPE
