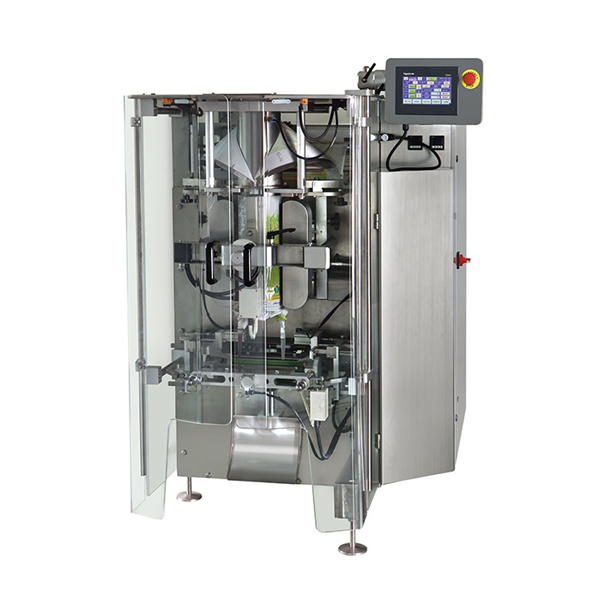

VFFS Pillow/Gusseted/Chained High Speed Bagger VG42
VFFS Pillow/Gusseted/Chained High Speed Bagger VG42
Items
Content
Packing speed
Max 150 bags/min ( Specific speed depends on bag length, film material, product, etc.)
Bag size
(L)50-360 mm (W)50-200 mm
Bag making mode
Pillow-type bag, standing bag, punch
Range of measuring
≤ 2.4L
Max packaging film width
420 mm
Thickness of film
0.04-0.09 mm
Air consumption
0.8 Mpa 0.3 cmb/min
Main power/voltage
5.6 KW/220V 50 Hz
Dimension
L1850*W1200*H1460 mm
The weight of switchboard
500 kg
INQUIRY ONLINE
product detail
Features
* Low cost high gain, high speed and efficiency.
* Famous brand PLC control system, large touch screen, convenient to operate;
* Film drawing down system and horizontal sealing controlled by servos;
* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
* The way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.
