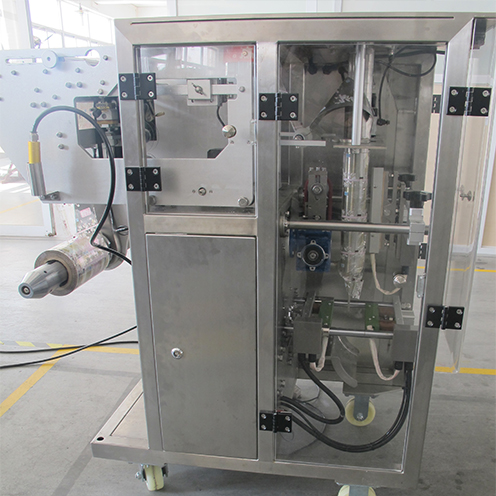

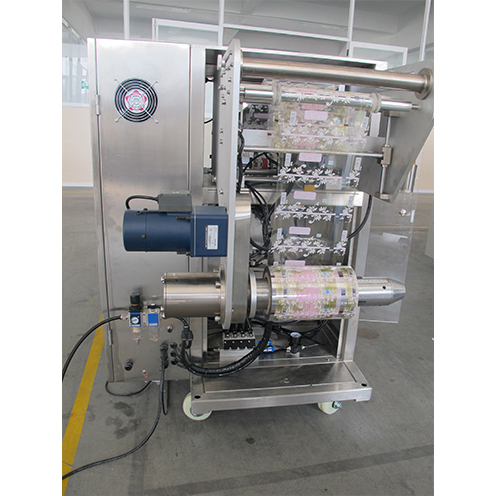

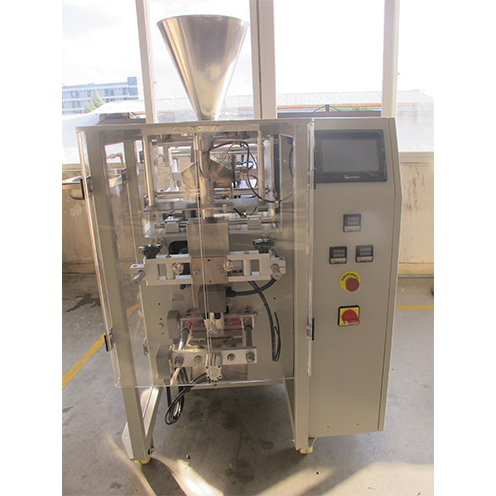

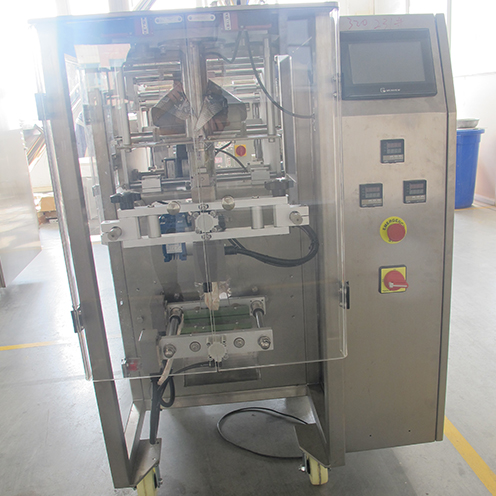

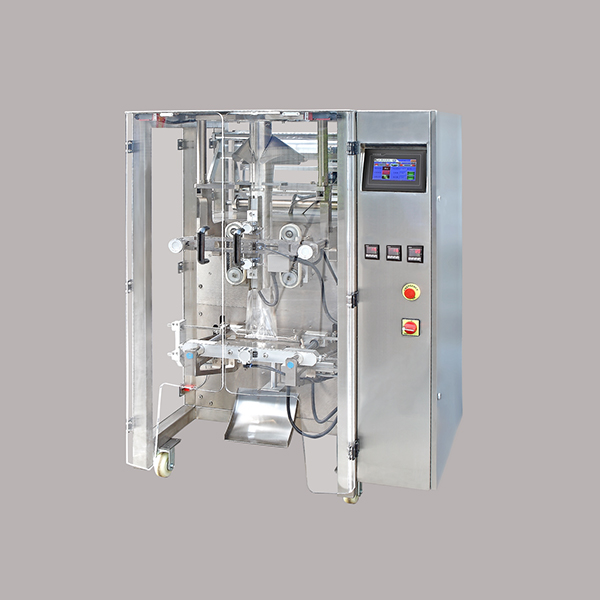

VFFS Pillow/Gusseted/Chained Bagger VD32/VD32A/VD32II
Suitable to pack coffee bean, sugar, salt, spice, potatochip, puffed food, jelly, pet food, snacks, gummy, etc
|
Items
|
Content
|
|
Model
|
VD32 / VD32A
|
VD32II
|
|
Max packing speed
|
`80bags/min
|
100bags/min
|
|
Bag size
|
(L)50-200mm(W) 60-150mm
|
|
Bag type
|

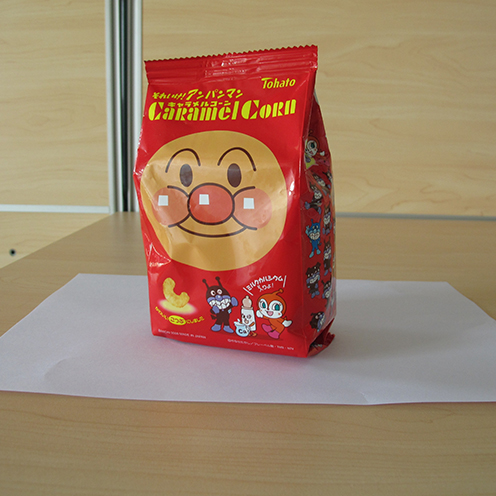

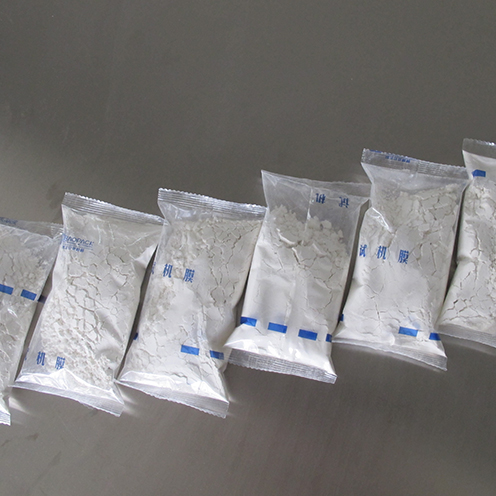

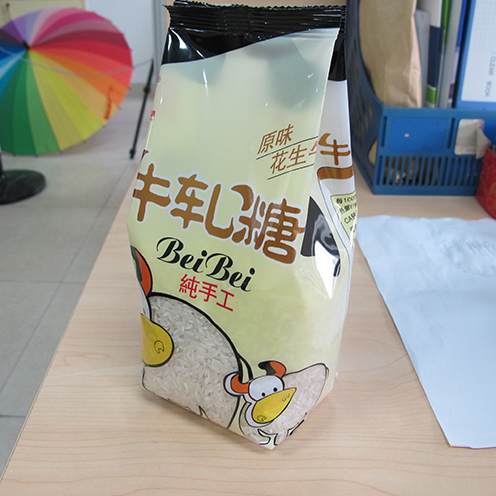

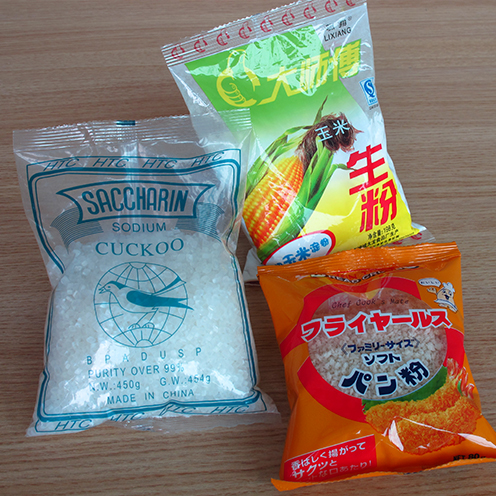

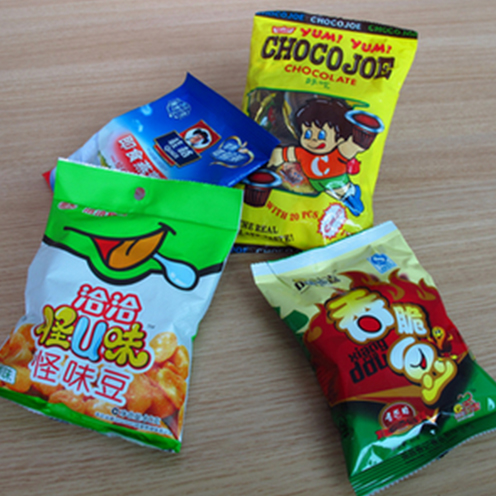

Pillow bag, gusseted bag, punching bag, vacuum bag
|
|
Max packaging width
|
320mm
|
|
Packing film material
|
BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/PE,etc
|
|
Film Thickness
|
0.04-0.09mm
|
|
Air consumption
|
0.8Mpa 0.3cmb/min
|
|
Voltage
|
2.2KW 220V 50/60Hz
|
|
Dimension
|
L1115*W800*H1370mm
|
|
The weight of switchboard
|
300kg
|
product detail
Features
A. High speed and efficiency B. Famous brand PLC control system, large touch screen, convenient to operate;
C. Film drawing down system and horizontal sealing controlled by servo motor minimize the loss with complete automatic warn protection function;
D. High automatic, it can complete the whole packaging process, measuring, filling , sealing, date printing , counting, transporting.
E. The contact parts with food is made of 304# high quality stainless steel ensure food safety
Technical advantages
Famous brand PLC control system, wide version touch screen, convenient to operate.
Film drawing down system and horizontal sealing controlled by servo motor;
Perfect alarm systtem to reduce waste;
It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment;
Optional Devicee
filling nitrogen device, gusseted device, punching jaws, chain bags device, PE film device, venting device.
