How to choose combination weigher

  • source: baopack.auto;
  • Time: 2020-10-16
  • Share:

Now our company supplies a variety of computer combination weigher. Customers can choose the suitable combination weigher for their requirements.

The following are combination weigher of our company.

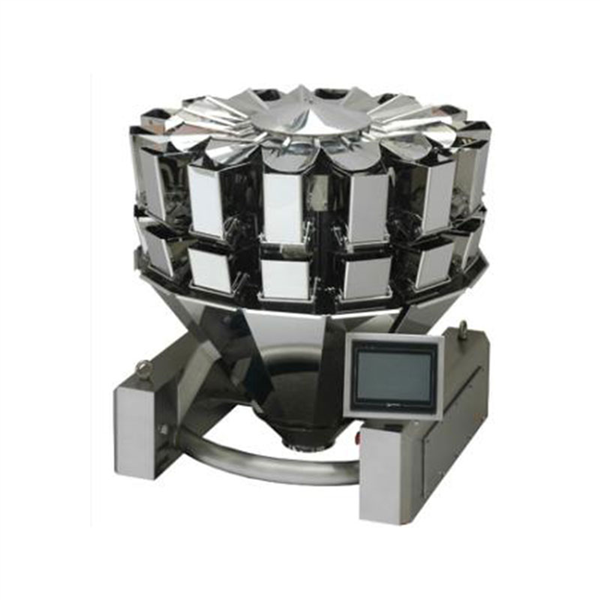

14 heads combination weigher

The weigher has 14 buckets. Each bucket contains a weighing bucket and a memory bucket. The max hopper volume is 2.5L. The max speed is 65bags/min.The accuracy is ±0.2~2g. The weighing cap is 10-2000g.

The main vibration sensor replaces the ordinary photoelectric eye to control the feeding signal of the elevator.Automatic amplitude tracking function, more effective control amplitude, to achieve uniform feeding.

14-heads-weigher_2

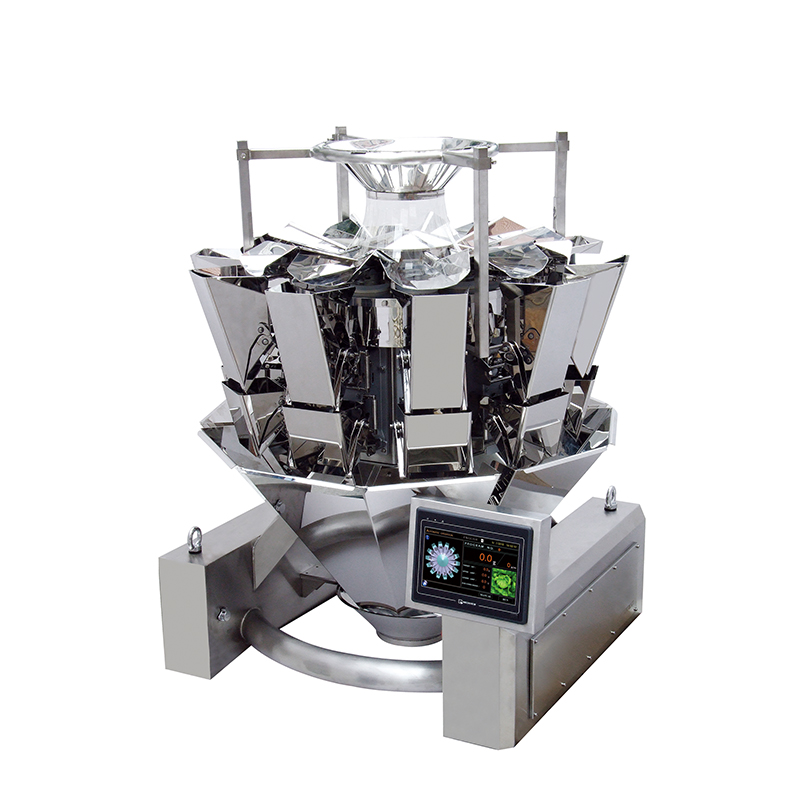

10 heads combination weigher

The weigher has 10 buckets. Each bucket contains a weighing bucket and a memory bucket. The max hopper volume is 1.3L. The max speed is 65bags/min. The accuracy is ±0.2~2g. The weighing cap is 10-1000g.

In operation, the weighing hopper has the function of automatic zero clearing to remove tare weight and improve accuracy.Force a combination of functions.Increase the number of combinations per weighing bucket to increase speed.

multihead-weigher-10-heads00

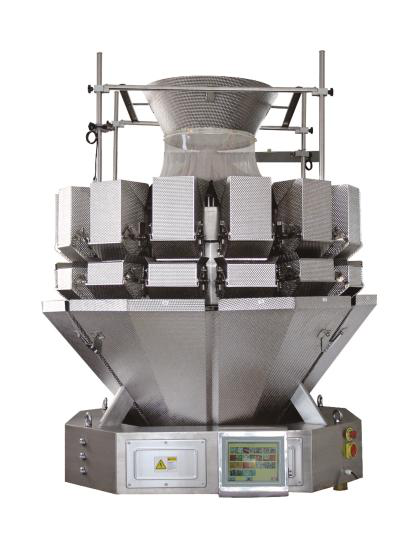

Salad 14 heads combination weigher

The weigher has 14 buckets. Each bucket contains a weighing bucket and a memory bucket. The max hopper volume is 5L. The max speed is 70bags/min. The accuracy is 1-5g. The weighing cap is 100-5000g.

This combination calls the main components stainless steel, clean sanitation, fully sealed design easy to clean.Several buckets weighing the target weight can be set for discharging in turn, which can effectively solve the blocking problem of fluffy material.

alad-14-heads-combination-weigher

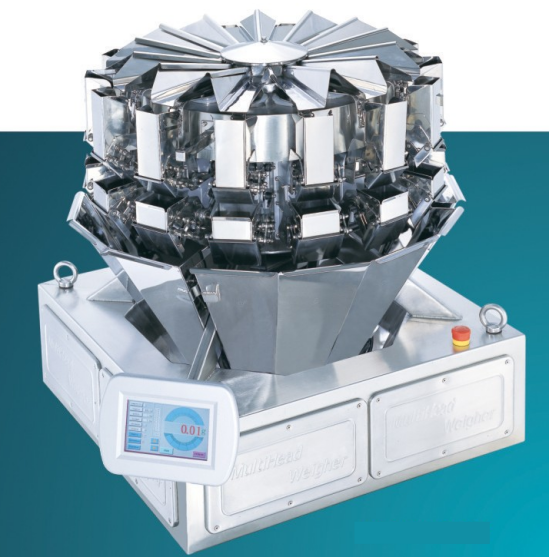

10/14 heads compact weigher

The weigher has 10 or 14 buckets. Each bucket contains a weighing bucket and a memory bucket. The max hopper volume is 0.5L. The max speed of 10 heads compact weigher is 65bags/min. The max speed of 14 heads compact weigher is 90bags/min. The accuracy is 0.2-1g. The weighing cap is 2-250g.

The weigher has automatic frequency control of vibration and auto zeroing during operation.

10-14-heads-compact-weigher
