VFFS Pillow/Gusseted/Chained Bagger VP62

VP62

Model	CB-VP62
Packing speed	60bags/min
With membrane range	330mm-620mm
Bag size	(L)100-400mm (W)150-300mm
Bag type	Pillow bag, gusseted bag, punching bag
Film thickenss	0.04-0.09mm
Air consumption	0.8 Mpa 0.35m3/min
Power source	3.9 KW/220V 50/60Hz
Dimension	(L)1820×(W)430×(H)2000mm
Weight	800kg

Application

Suitable to pack coffee bean, sugar, salt, spice, potatochip, puffed food, jelly, pet food, snack, gummy, etc

INQUIRY ONLINE

product detail

Features

* single servo motor for film drawing down system.

* Semi -automatic film rectifying deviation function;

* Famous brand PLC. Pneumatic system for vertical and horizontal sealing;

* Compatible with different internal and external measuring device;

* Suitable to packing granule, powder, strip shape materials, such as puffed food, shrimp, peanuts, popcorn, sugar, salt, seeds, etc.

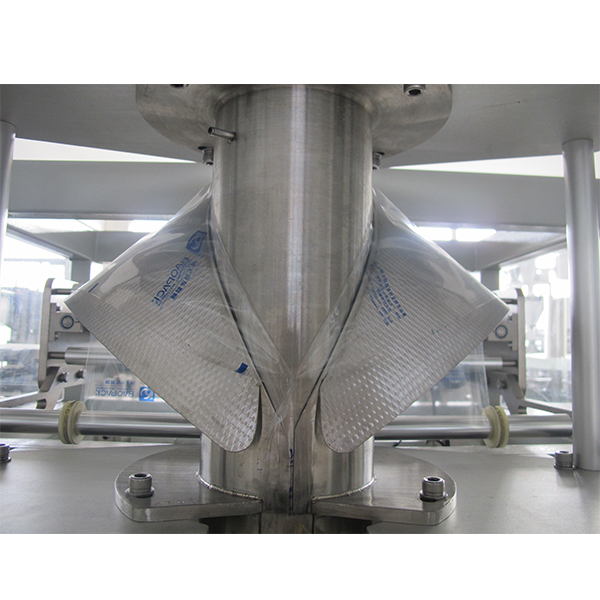

* The way of bag making: the machine can make pillow-type bag and standing-bevel bag according to customer’s requirements.

Optional Device

Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE film device, venting device.

Technical advantage

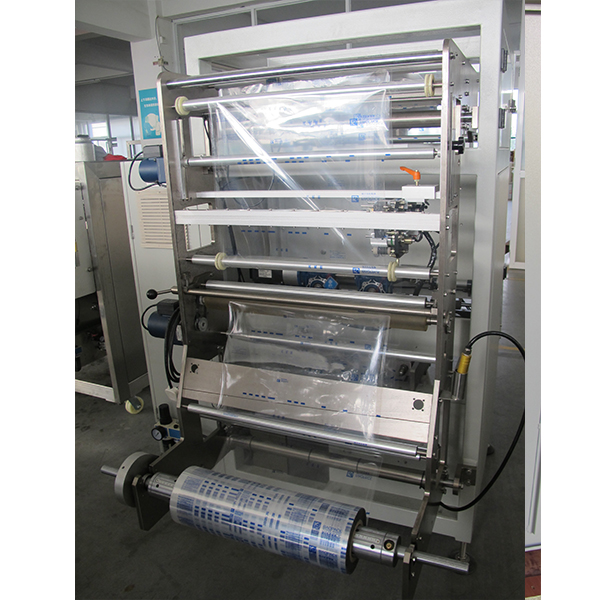

Double servo motors for film drawing down system

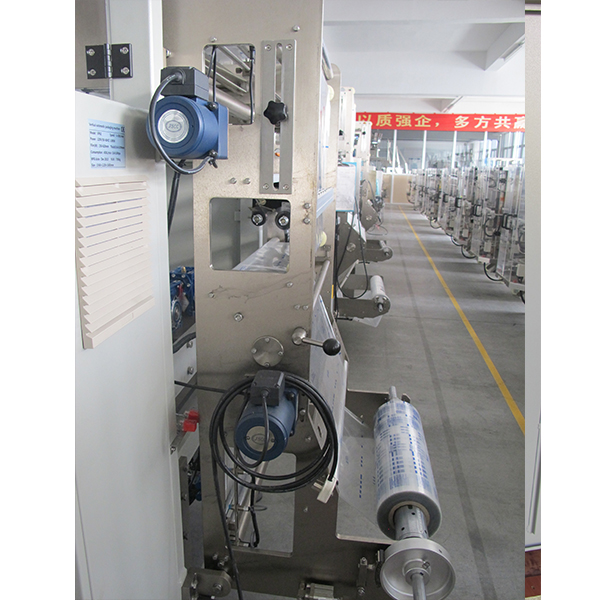

Automactic film rectifying deviation funciton

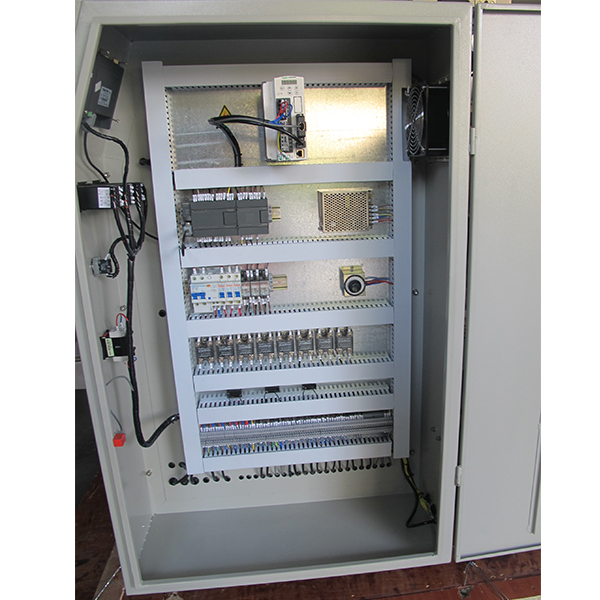

Famous brand PLC. Pneumatic system for vertical and horizontal sealing

Adopt clip & supporting without broken bags & reduce waste

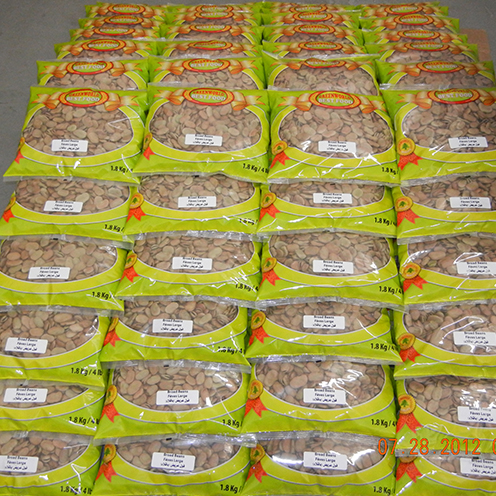

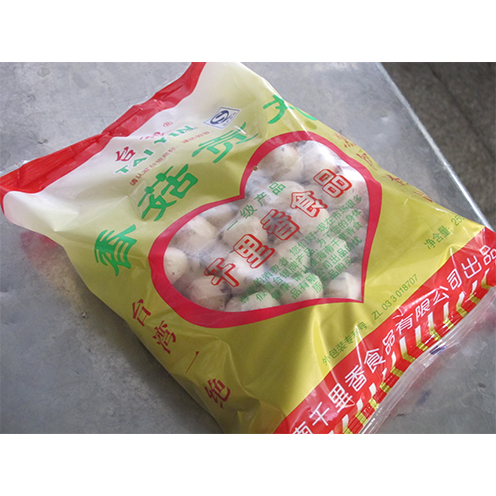

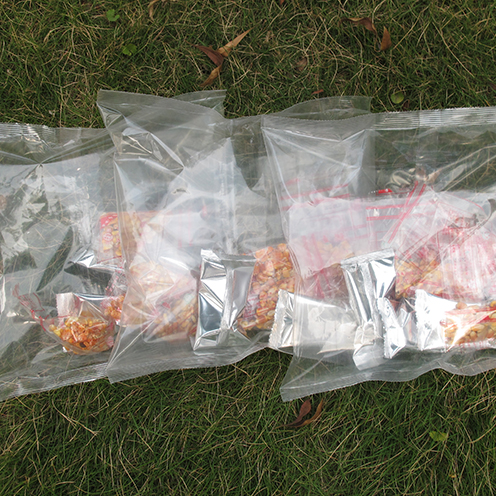

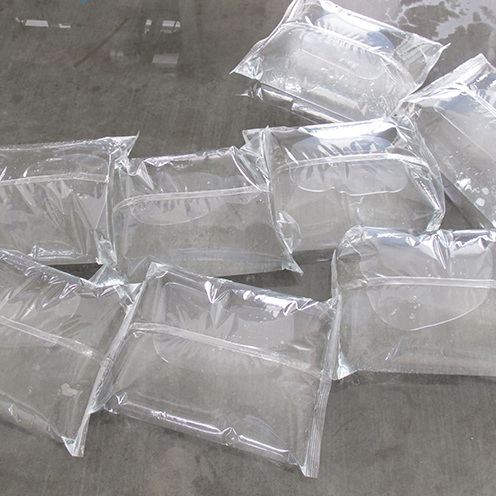

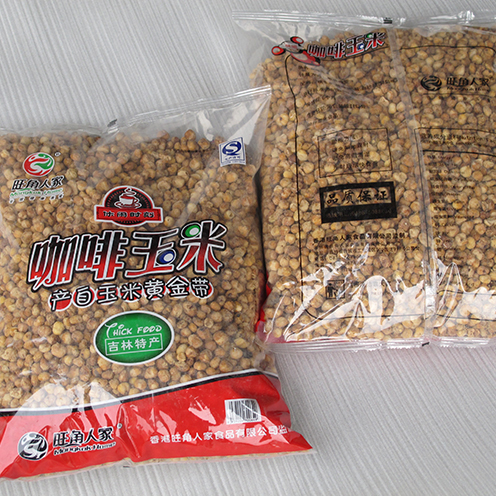

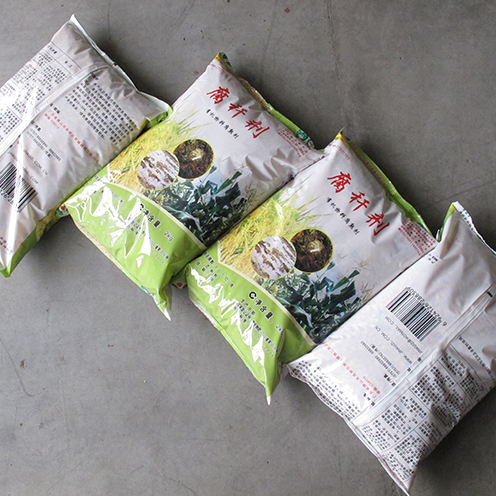

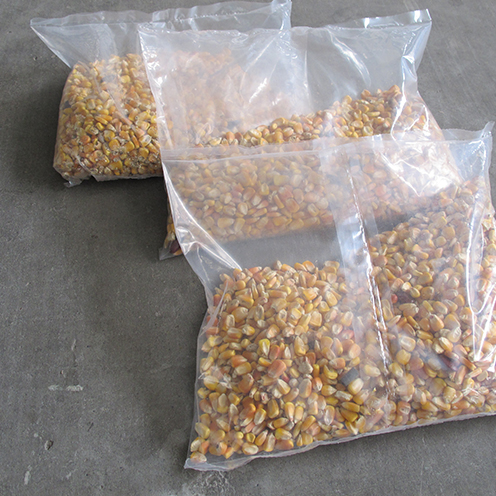

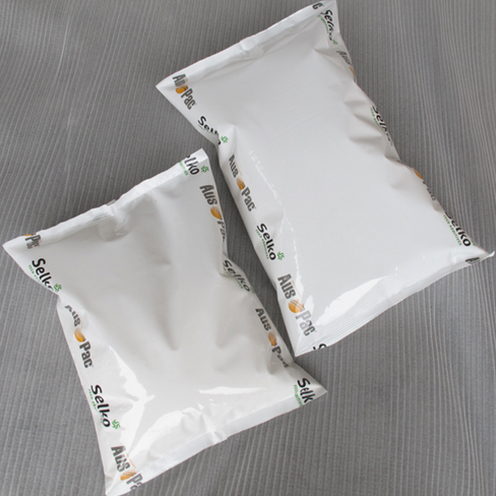

BAG TYPE

A versatile, economical, and popular bag style that can be quite eye-catching with the right graphics. Applicable to almost all industries and applications.
