Item |
Content |
|
Capacity |
*80-120 bags/min, depending on weight& packing film’ material. |
|
Accuracy |
*≤±1Filling range.5% , depending on the measuring equipment & materials |
|
Bag size |
(W)50-200mm (L)50-360mm |
|
Film width |
Max 420mm |
|
Bag type |
Pillow bag |
|
Filling range |
150-1300ml |
|
Film thickness |
0.04-0.09mm |
|
Package material |
BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
| Air consumption | 0.8Mpa 0.5m3/min |
| Total powder | 7.8KW |
| Voltage Four wire | three phase 380V 50HZ |
| Air compressor | Not less than 1 CBM |
| Total height | 4000mm |
INQUIRY ONLINE
product detail
1.A complete package process.This vffs packing machine is capable of automatically completing a series of packaging processes for filling, metering, bagging, date printing, charging (exhaust), and product output.
2.Save time, effort, power, and smarter operation.
3.Multi-selection of packing bag you can choose. it not only could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc, but also it could provide a packing with a new and fashion design, excellent technology.
4.Provide a good quality and high precision, efficiency. Meanwhiles, it would not crash the materials.
5.Easy to operate and use. VFFS high speed machine VG42 is a Simple and generous food packing machine.
6.A multi heads weigher-The multihead weigher packing machine VG42 (four servo motors) has 14 heads high speed weigher.
|
Item |
Content |
|
Capacity |
*80-120 bags/min, depending on weight& packing film’ material. |
|
Accuracy |
*≤±1Filling range.5% , depending on the measuring equipment & materials |
|
Bag size |
(W)50-200mm (L)50-360mm |
|
Film width |
Max 420mm |
|
Bag type |
Pillow bag |
|
Filling range |
150-1300ml |
|
Film thickness |
0.04-0.09mm |
| Package material | BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
| Air consumption | 0.8Mpa 0.5m3/min |
| Total powder | 7.8KW |
| Voltage Four wire | three phase 380V 50HZ |
| Air compressor | Not less than 1 CBM |
| Total height | 4000mm |
1.factory Outlet. We provide a full range of services in production, packaging, sales, delivery and after-sales service.
2.Many Years of machine manufacturing experience. Our food packing machines are more refined, higher quality and safer.
3.Transport guaranteed. We will ensure that the machine is safely packaged and shipped in a timely and safe manner.
4.Provide a special customized service.

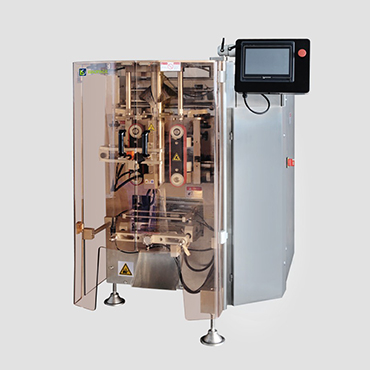

BAOPACK VFFS High Speed Packing Machine is a packing machine for food product with quick and easy operation and multiple packing bag styles. We are factory outlet which can benifeit you.
Join us and find a business opportunity now!
Package product

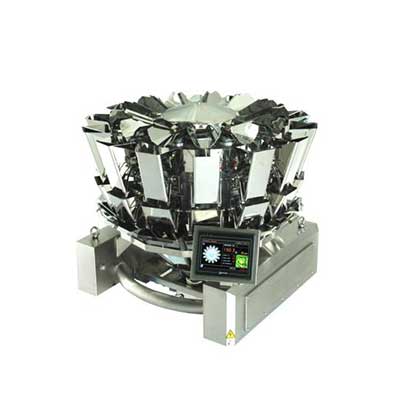

14 heads weigher
BAOPACK Packaging Machinery Co.,Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Weigher：14 Heads high speed combination weigher
Model: CB-14HA
Surface Execution：Plain surface / dimple surface
Material：304 stainless steel
Bucket capacity：1.3L
Max single dump：Up to 1.8L
Max speed：Up to 115 wpm
Accuracy：± 0.5-- 1g
Discharge point：one
Control Panel：10 inch touch screen
Driving system：Step motor
Loadcell：8KG
Power supply：220V/50HZ(60HZ)
Gross weigh/ Net weigh：530KG/430KG
Package size：1630*1130*1320 mm
We have various models of weigher, such as 10 heads weigher, 14 heads weigher, 18 heads weigher, Salad weigher, linear weigher, and so on. Different products will be used different weigher. Please refers Package Measurement System of Flexible Solution.
Z-type conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Lifting height: Can be customized to meet customers’ requirement.
Speed of lifting:0-17m/minute
Lifting quantity:9 or 12 cubic meter/hour
Bucket:2L or 4L, flat or dimple bucket
Power:750W
Voltage:380v
Output conveyor
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The finished products conveyor have different models. The belt width has 200mm, 300mm, 295mm, 435mm, etc. The belt material has PU, PVC, PP belt, or chain belt. The optional device is various speed drives.
Rotary table
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
Rotary table can collect the finished bags. The workers can sit beside the rotactary table to collect the finished bags into the boxes or other packages.
Specification
Diameter: 1000mm
Height: 650mm
Voltage: 220V/120W
Supporting Platform
BAOPACK Packaging Machinery Co., Ltd.is located in Foshan City, Guangdong province, southern China, owning more than 10000m2 standard modernized workshop with high technology.Since 1995, company founder Zhou Guanglin, engaged in packaging machinery industry.
The sizes of supporting platform can be customized. Its sizes are depended by the sizes of packing machine and weigher. The platform can be made by stainless steel or mild steel.
|
Item |
Content |
|
Capacity |
*80-120 bags/min, depending on weight& packing film’ material. |
|
Accuracy |
*≤±1Filling range.5% , depending on the measuring equipment & materials |
|
Bag size |
(W)50-200mm (L)50-360mm |
|
Film width |
Max 420mm |
|
Bag type |
Pillow bag |
|
Filling range |
150-1300ml |
|
Film thickness |
0.04-0.09mm |
|
Package material |
BOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc |
| Air consumption | 0.8Mpa 0.5m3/min |
| Total powder | 7.8KW |
| Voltage Four wire | three phase 380V 50HZ |
| Air compressor | Not less than 1 CBM |
| Total height | 4000mm |
INQUIRY ONLINE
VFFS High Speed Packaging Machine
Snack
Snack
Snack
Snack
Snack
Snack
Machines +
1. A entire package deal process.This vffs packing computing device is succesful of mechanically finishing a collection of packaging procedures for filling, metering, bagging, date printing, charging (exhaust), and product output.
2. Save time, effort, power, and smarter operation.
3. Multi-selection of packing bag you can choose. it now not solely should supply the pillow bag, perspective fold bag, dangle gap bag, hyperlink bag, etc, however additionally it should furnish a packing with a new and trend design, top notch technology.
4. Provide a appropriate fantastic and excessive precision, efficiency. Meanwhiles, it would now not crash the materials.
5. Easy to function and use. VFFS excessive pace desktop VG42 is a Simple and beneficiant meals packing machine.
6. A multi heads weigher-The multihead weigher packing computer VG42 (four servo motors) has 14 heads excessive velocity weigher.
Industries served +

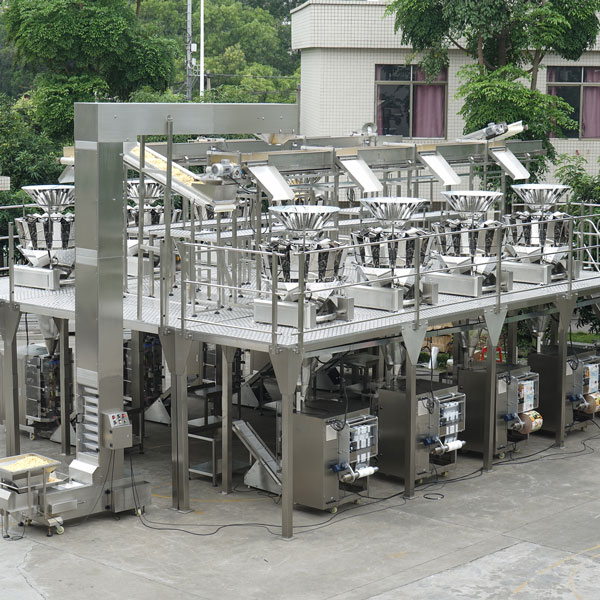

1.ZV Series main frame 2.Multi Head Weigher
3.Z type bucket elevator 4.Vibration feeder
5.Supporting platform 6.Product conveyor
