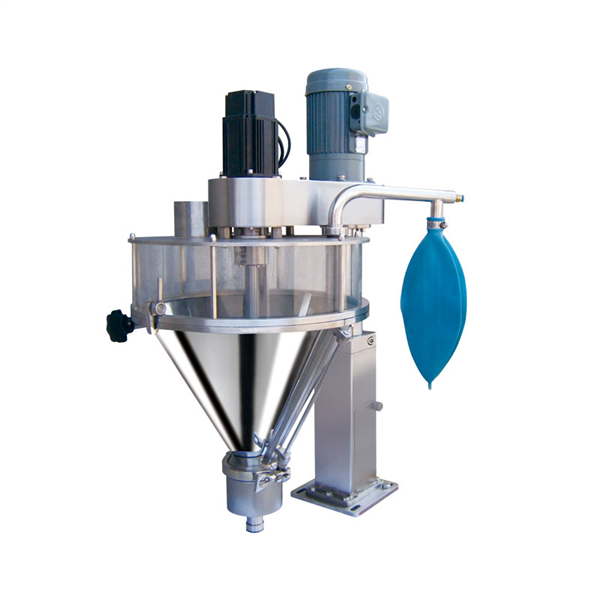

Auger filler

304 or 316 food grade stainless steel

Auger filler description:

* It completes measuring, bagging, filling automatically. Auger filler drove by servo motor to measure and fill materials.

* Suitable to package free-flowing or poor- flowing powder.

* Stainless steel 304 contact parts.

Technical specification:

we can use it to weight 1g-5kg pwoder or flour, here is the example for middle size



Item	Middle type auger filler
Filling range	100-3000g
Capacity	Max50bags/min
Accuracy	±0.3-1.5%
Power	380V  2.5KW
Auger filler dimension	L690*W1030*H1100mm
Auger filler dimension	220kg
Measure	Screw rotary filling



This machine is designed for the powder, ultra-fine powder and other materials, it can be auto-complete finish measuring, filling, blowing nitrogen and others. It can match with variety of bag packing machine for the measurement of powder filling materials. It fits the fluidic or low fluidity materials, such as milk powder, fodder, rice powder, white sugar, monosodium glutamate, solid beverage, dextrose, food additive, dyestuff, and so on.
We have various models of Auger filler and the range is around 1-5000g. We will recommend the most suitable model to you basing on the specific weight of products. Please refers Package Measurement System of Flexible Solution. Thanks.

•
•
•
•
•
•
