Granular vertical packing machine with Measuring cup

  • source: baopack.auto;
  • Time: 2021-01-11
  • Share:

Vertical packing machine is mainly composed of metering device; transmission system; vertical sealing and horizontal sealing device; former; The filling pipe and the film pulling and feeding mechanism are composed of components.

Suitable for all kinds of powder; Particles; Packaging of tablets and other items. Compared with other packing machines, the most distinctive place of the vertical packing machine is that the feeding barrel of the packaged material is arranged on the inside of the bag-making machine, and the bag-making and filling material are carried out from top to bottom along the vertical direction.

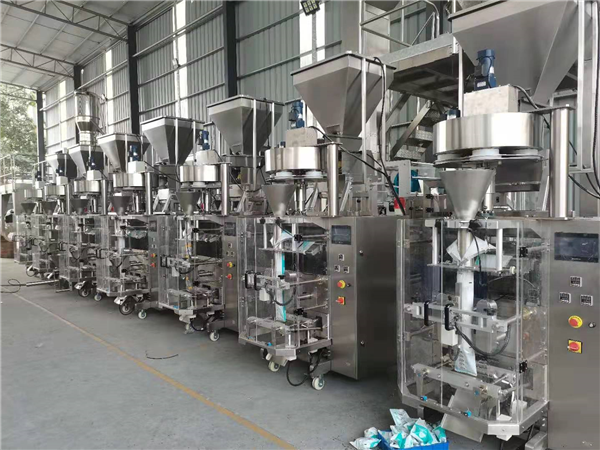

As shown in the figure below. There are several vertical packing machine with measuring cup to pack puffed food.

----_202101061630373

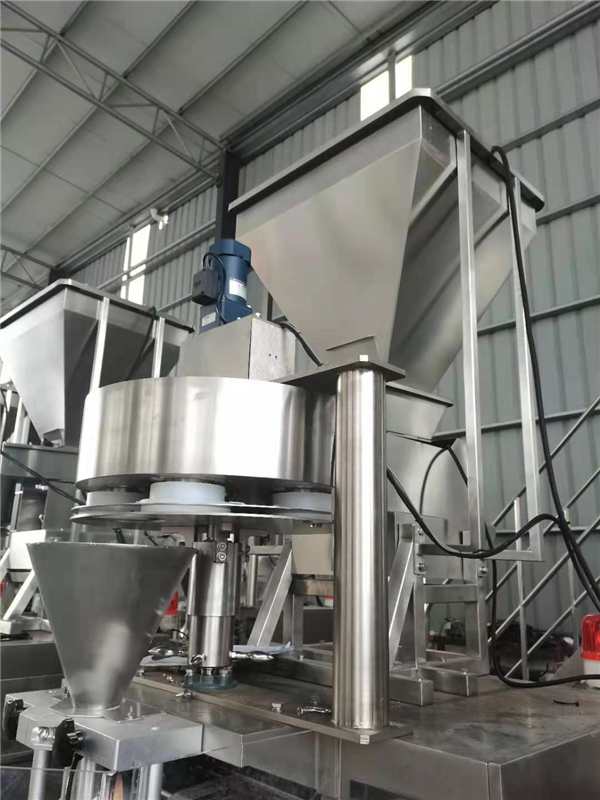

As shown in the figure below. This is the measuring cup. A measuring cup is used to measure the weight of the material to be packed. As the name implies, the measuring cup is measured by volume. It does not have weighing function, so it is not suitable for large grain materials, but only for small grain materials. Such as rice, nuts and small grain puffed food.

----_20210106163037

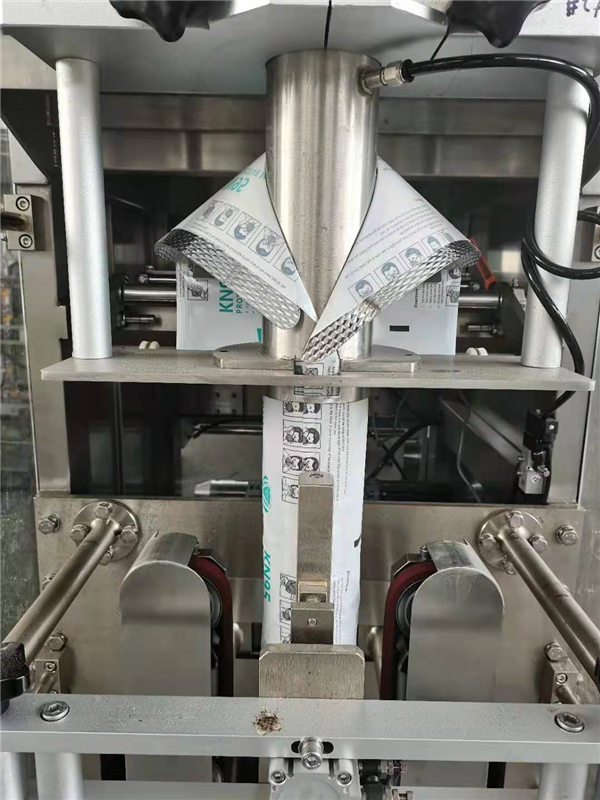

As shown in the figure below. This is the former. It is used to shape the bags. The former of different sizes can be customized according to the size of the bag. Different formers can be changed on the same main machine.

----_202101061630372

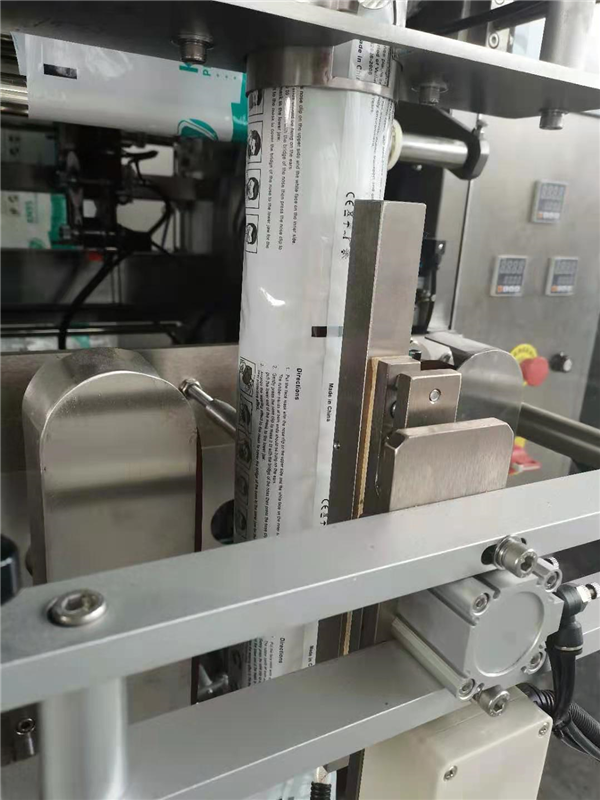

As shown in the figure below. This is the vertical sealing.

----_202101061630371

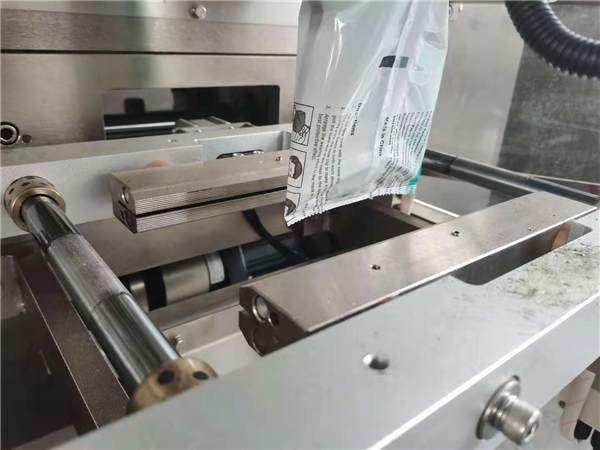

As shown in the figure below. This is the horizontal sealing.

----_202101061630376

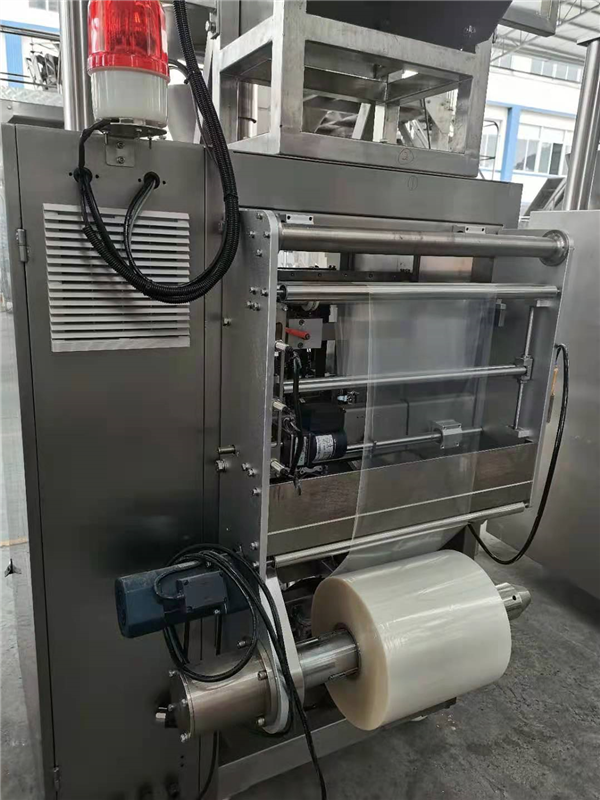

As shown in the figure below. This is the film.

----_202101061630377

Our packaging machine can pack any product you want to pack, you can choose different models according to different needs.

BAOPACK technology, innovative packaging, trust professional, choose BAOPACK.
